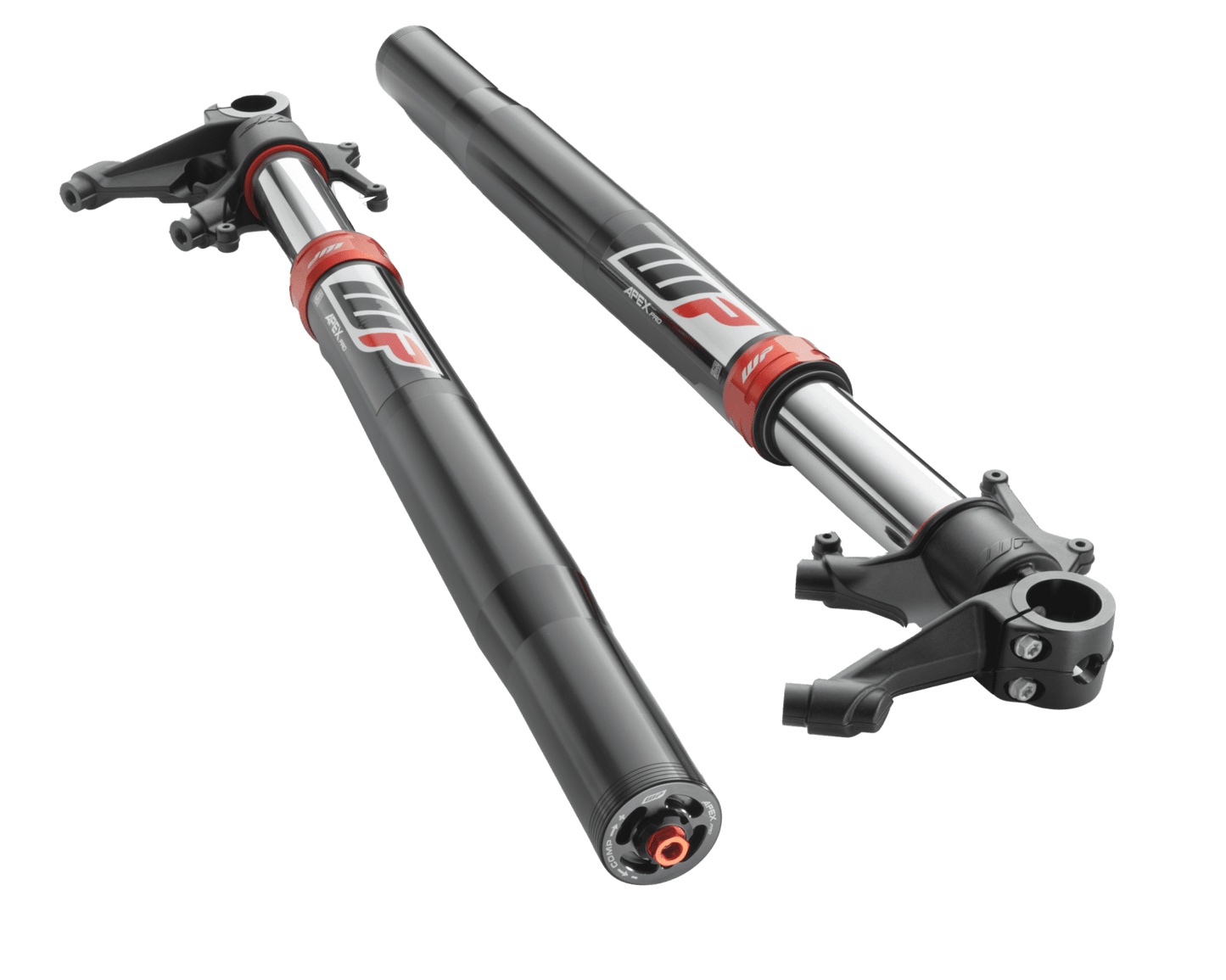

APEX PRO 7548 Fork

APEX PRO 7548 Fork

TECHNOLOGY

Closed Cartrigde

CLOSED CARTRIGDE

By compartmentalizing the damping system on CLOSED CARTRIDGE forks, it is possible to reduce the oil volume. Pressure in the system prevents cavitation and ensures reliable damping performance in demanding track conditions.

KEY FEATURES

    • Advanced Closed Cartridge technology suitable for retrofitting
    • High performance and good response in any situation
    • More confidence at all times due to good ground contact
    • All aluminium parts CNC – machined and anodized
    • Fully adjustable with standard tools
    • Reduces tyre abrasion and improves the handling generally

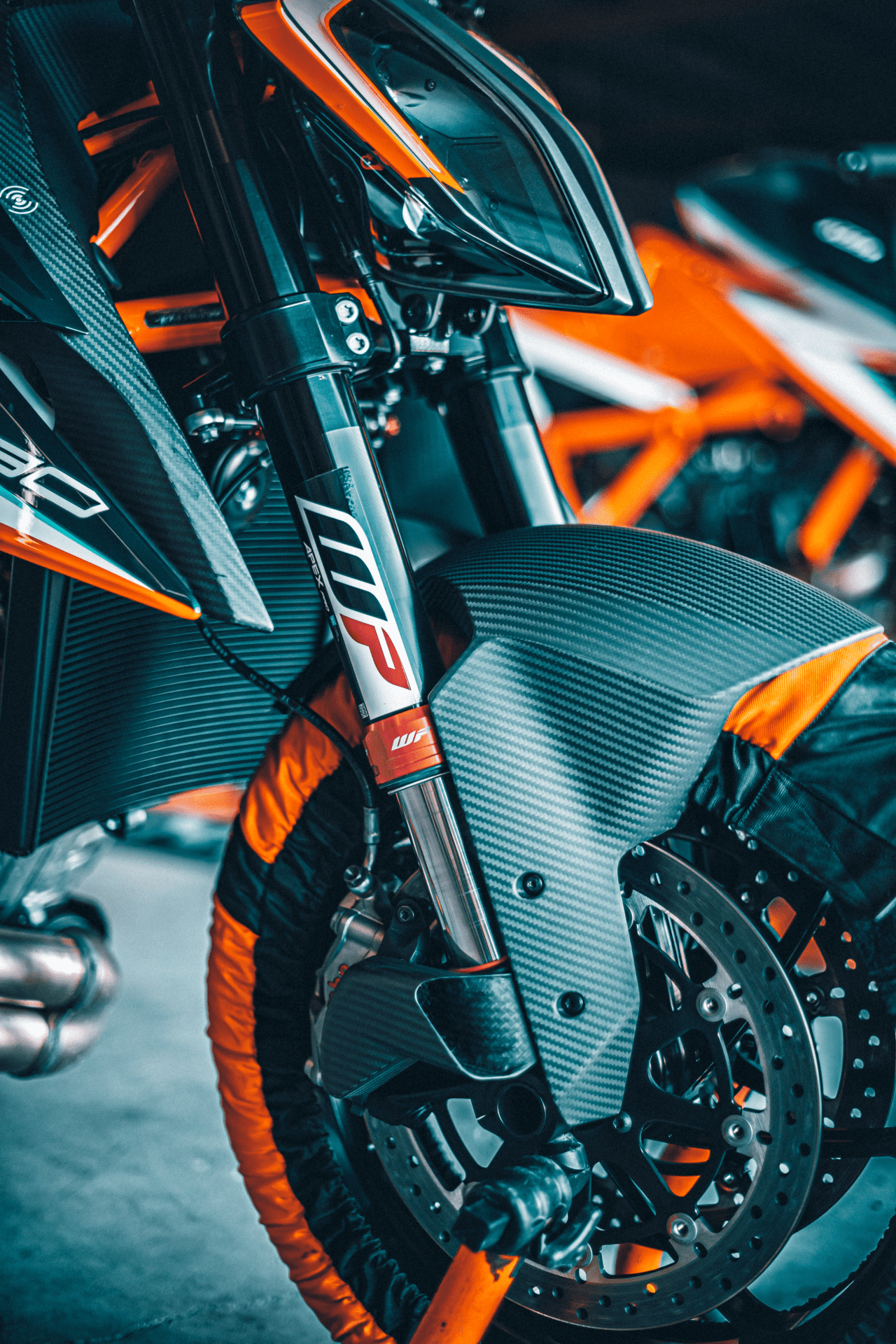

With every detail taken care of, the APEX PRO 7548 Fork has been specially created for the KTM 1290 SUPER DUKE R, adding an even sportier and more premium touch. The APEX PRO 7548 Fork guarantees the best performance for race-oriented motorcyclists and professional racers. The individual damping properties can be finely and individually tuned with the fully adjustable compression and rebound damping. The WP APEX PRO 7548 Fork has an internal reservoir. By putting the oil in this reservoir under pressure, the damping is much more consistent.  The APEX PRO 7548 Fork can be combined with the APEX PRO 7746 shock, so you have everything you need to tame the beast.

TECH DATA

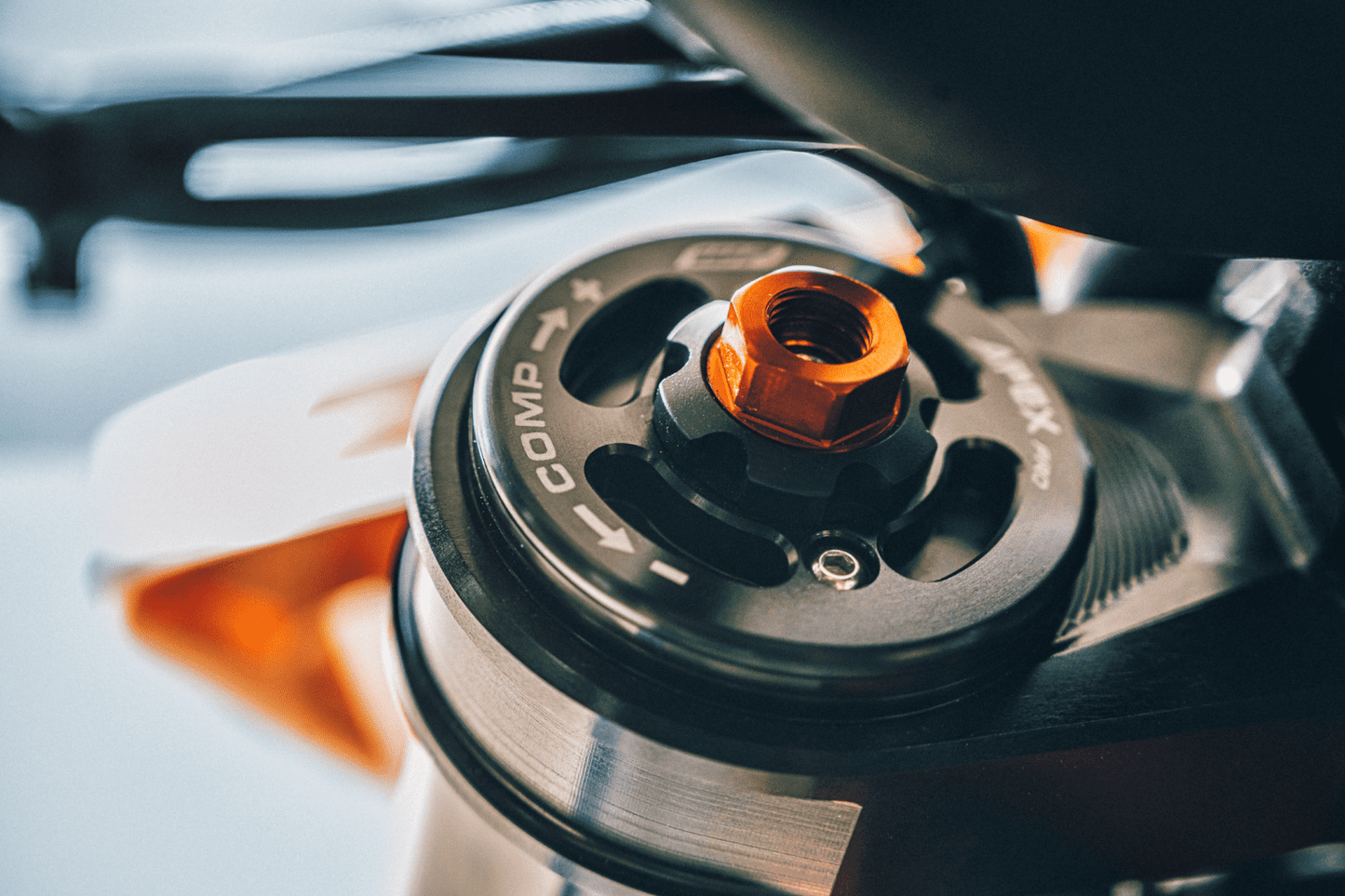

  • Adjuster
    • compression damping
    • spring preload
    • rebound damping
  • Kolben 0.91 inch
  • KS 0.47 inch

Linked Damping Suystem

WP TECHNOLOGY


AER TECHNOLOGY
The AER technology significantly reduces the overall weight. In addition, the AER system allows an uncomplicated optimization of the damping performance and adaptation to the track without opening the fork.

CLOSED CARTRIGDE
By compartmentalizing the damping system on CLOSED CARTRIDGE forks, it is possible to reduce the oil volume. Pressure in the system prevents cavitation and ensures reliable damping performance in demanding track conditions.

CONE VALVE
The CONE VALVE technology improves the turbulence-free oil flow through the damping piston by using a conical valve. This results in a much better response and a lower initial breakaway torque.

LINKED DAMPING SYSTEM
The LINKED DAMPING technology optimizes the progression of the entire shock absorber via a linkage attached to the swing arm. This enables perfect grip and sufficient damping reserves.

OPEN CARTRIDGE
Due to the increased oil volume in the damping system, the OPEN CARTRIDGE technology enables optimized heat dissipation with reduced friction. This ensures constant damping performance despite increased stress.

PROGRESSIVE DAMPING SYSTEM
PROGRESSIVE DAMPING technology generates a progressive damping characteristic with increased damping performance in the last third of the suspension travel, resulting in a reduction in weight and maintenance.

SUPERTRAX
SUPERTRAX technology perfects the TRAX System. SUPERTRAX detects missing ground contact and enables faster rebound by opening a bypass oil valve. The rider has 100% control over the speed of the rebound movement thanks to fully variable adjustment of the rebound damping.

TRAX TECHNOLOGY
The TRAX technology detects missing ground contact and enables a faster rebound by opening a bypass oil valve. Traction and acceleration are improved and handling is optimized.
