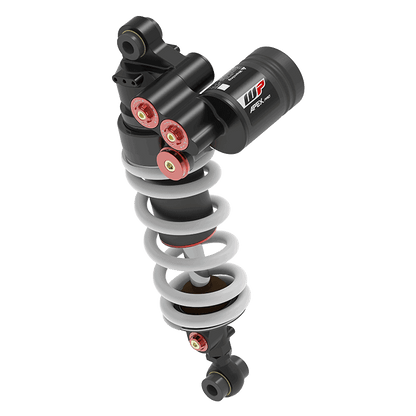

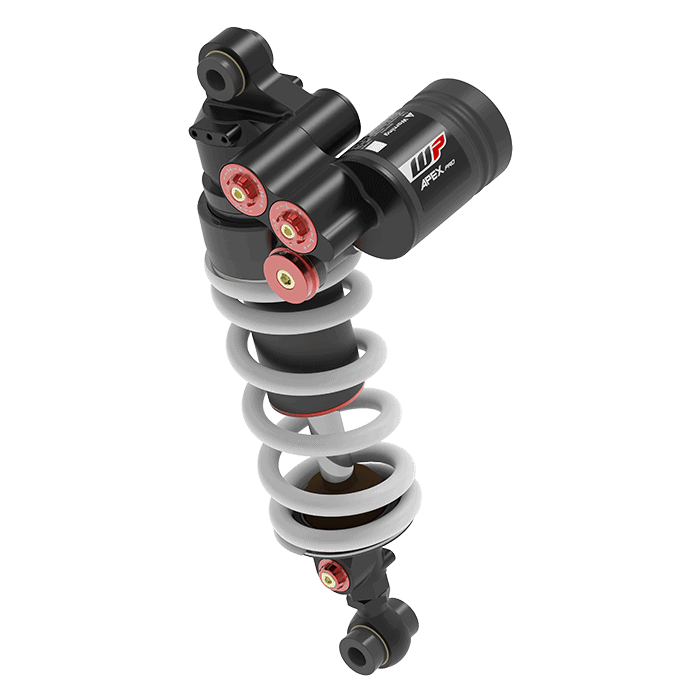

APEX PRO 7746 SHOCK

APEX PRO 7746 SHOCK

KEY FEATURES

    • Technology derived from the Supersport World Championship / Motorsport know-how for the road
    • Easily adjustable with standard tools
    • Highest quality due to precise manufacturing tolerances
    • Separate high and low speed compression setting
    • Rebound adjustment and height adjustment
    • 46 mm piston and 18 mm piston rod guarantee optimum oil circulation

APEX PRO stands for pure, concentrated motorsport – distilled from decades of racing experience and in cooperation with current racing title holders. These ingredients are used to create the new WP APEX PRO 7746 SHOCK, which is tailor-made with the highest precision for your KTM 790 DUKE / 890 DUKE R / 1290 SUPER DUKE R.

The extremely low weight high-tech materials bring motorsport demands to the road. The suspension characteristics of the WP APEX PRO 7746 SHOCK can be easily adjusted to almost any situation by means of the separate high- and low-speed compression and rebound settings. Thanks to the SCS BIG VALVE technology, your suspension now delivers maximum precision and direct feedback in every driving situation.

TECH DATA

  • Adjuster
    • spring preload
    • high-speed compression damping
    • low-speed compression damping
    • length
    • rebound damping
  • Kolben1.81 inch
  • KS0.71 inch

Linked Damping Suystem

WP TECHNOLOGY


AER TECHNOLOGY
The AER technology significantly reduces the overall weight. In addition, the AER system allows an uncomplicated optimization of the damping performance and adaptation to the track without opening the fork.

CLOSED CARTRIGDE
By compartmentalizing the damping system on CLOSED CARTRIDGE forks, it is possible to reduce the oil volume. Pressure in the system prevents cavitation and ensures reliable damping performance in demanding track conditions.

CONE VALVE
The CONE VALVE technology improves the turbulence-free oil flow through the damping piston by using a conical valve. This results in a much better response and a lower initial breakaway torque.

LINKED DAMPING SYSTEM
The LINKED DAMPING technology optimizes the progression of the entire shock absorber via a linkage attached to the swing arm. This enables perfect grip and sufficient damping reserves.

OPEN CARTRIDGE
Due to the increased oil volume in the damping system, the OPEN CARTRIDGE technology enables optimized heat dissipation with reduced friction. This ensures constant damping performance despite increased stress.

PROGRESSIVE DAMPING SYSTEM
PROGRESSIVE DAMPING technology generates a progressive damping characteristic with increased damping performance in the last third of the suspension travel, resulting in a reduction in weight and maintenance.

SUPERTRAX
SUPERTRAX technology perfects the TRAX System. SUPERTRAX detects missing ground contact and enables faster rebound by opening a bypass oil valve. The rider has 100% control over the speed of the rebound movement thanks to fully variable adjustment of the rebound damping.

TRAX TECHNOLOGY
The TRAX technology detects missing ground contact and enables a faster rebound by opening a bypass oil valve. Traction and acceleration are improved and handling is optimized.
