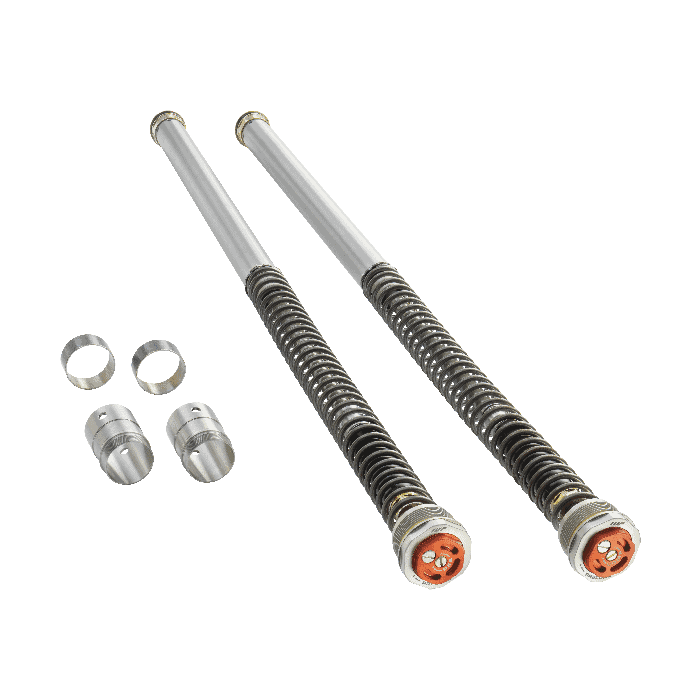

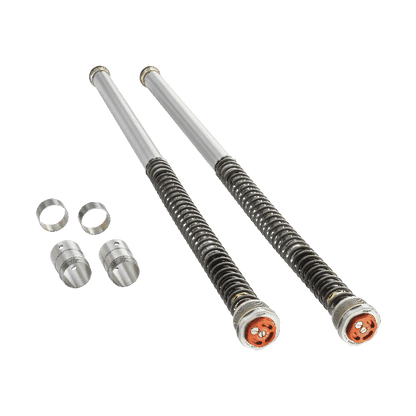

XACT PRO 7500

XACT PRO 7500

TECHNOLOGY

Cone Valve

CONE VALVE

The CONE VALVE technology improves the turbulence-free oil flow through the damping piston by using a conical valve. This results in a much better response and a lower initial breakaway torque.

Closed Cartrigde

CLOSED CARTRIGDE

By compartmentalizing the damping system on CLOSED CARTRIDGE forks, it is possible to reduce the oil volume. Pressure in the system prevents cavitation and ensures reliable damping performance in demanding track conditions.

KEY FEATURES

    • Improved feedback from the track in every riding-situation
    • Constant damping performance despite increased stress
    • Extreme longevity due to the use of only high-quality materials

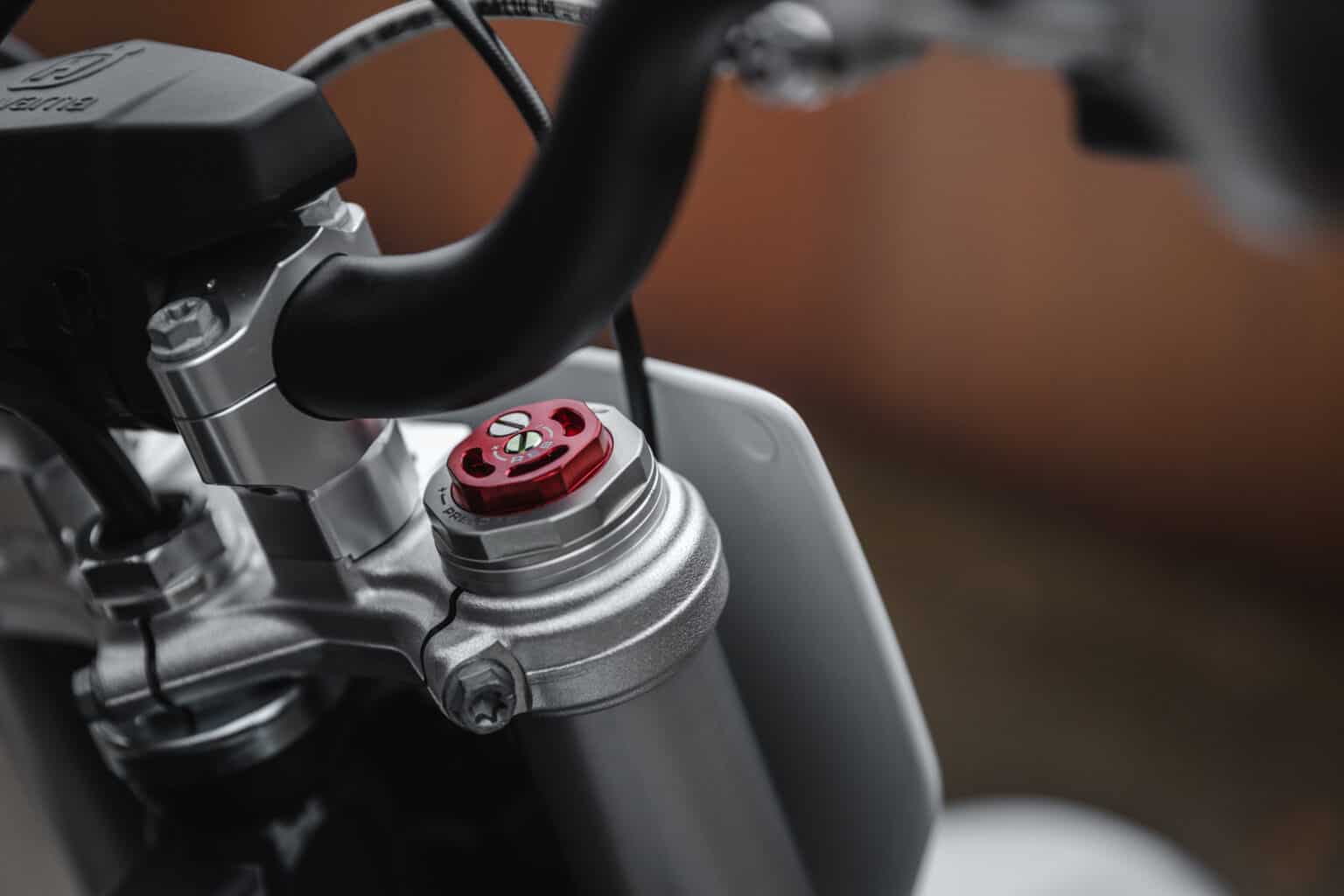

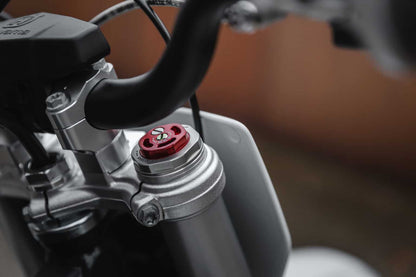

    • All settings can be adjusted externally and flexibly
    • Specially handcrafted with the highest care
    • Spring preload fully variable

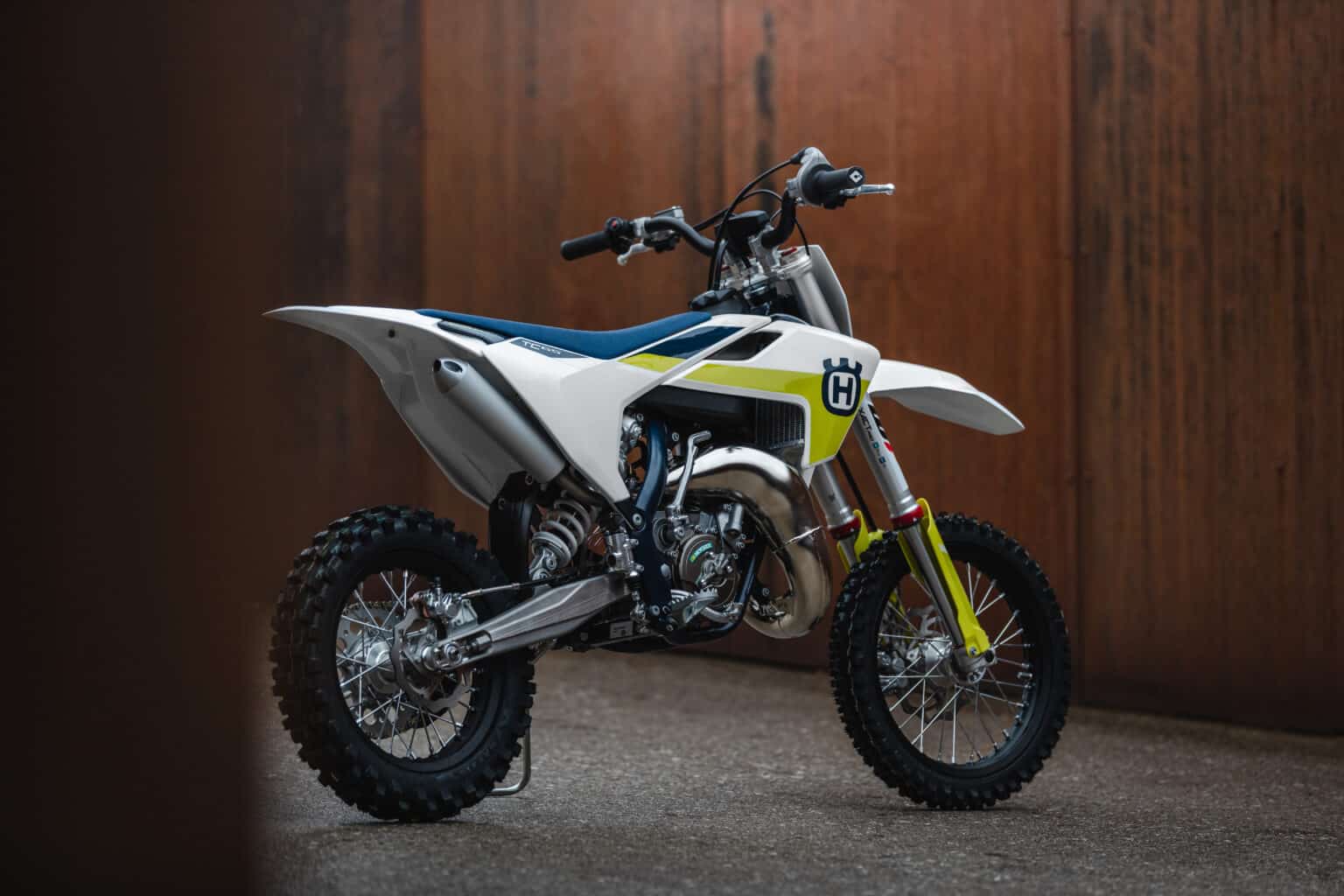

The XACT PRO 7500 Cartridge allows you to simply upgrade to first-class motorsport technology, offering extreme longevity due to the use of only high-quality materials. This Cartridge has been designed for the 50cc and 65cc motocross bikes with the highest precision just like the PRO COMPONENTS for the bigger bikes of the segment. The CONE VALVE Technology enables a linear damping performance with stiffer settings without loss of comfort, and it is combined with the OPEN CARTRIDGE Technology, which optimizes the heat dissipation and reduces friction for optimum performance.

TECH DATA

  • Weight 2725 g
  • Adjuster spring preload
  • Länge 36.89 inch
  • Kolben 0.79 inch
  • KS 0.47 inch
  • Gewicht 6.01 lb.

Linked Damping Suystem

WP TECHNOLOGY


AER TECHNOLOGY
The AER technology significantly reduces the overall weight. In addition, the AER system allows an uncomplicated optimization of the damping performance and adaptation to the track without opening the fork.

CLOSED CARTRIGDE
By compartmentalizing the damping system on CLOSED CARTRIDGE forks, it is possible to reduce the oil volume. Pressure in the system prevents cavitation and ensures reliable damping performance in demanding track conditions.

CONE VALVE
The CONE VALVE technology improves the turbulence-free oil flow through the damping piston by using a conical valve. This results in a much better response and a lower initial breakaway torque.

LINKED DAMPING SYSTEM
The LINKED DAMPING technology optimizes the progression of the entire shock absorber via a linkage attached to the swing arm. This enables perfect grip and sufficient damping reserves.

OPEN CARTRIDGE
Due to the increased oil volume in the damping system, the OPEN CARTRIDGE technology enables optimized heat dissipation with reduced friction. This ensures constant damping performance despite increased stress.

PROGRESSIVE DAMPING SYSTEM
PROGRESSIVE DAMPING technology generates a progressive damping characteristic with increased damping performance in the last third of the suspension travel, resulting in a reduction in weight and maintenance.

SUPERTRAX
SUPERTRAX technology perfects the TRAX System. SUPERTRAX detects missing ground contact and enables faster rebound by opening a bypass oil valve. The rider has 100% control over the speed of the rebound movement thanks to fully variable adjustment of the rebound damping.

TRAX TECHNOLOGY
The TRAX technology detects missing ground contact and enables a faster rebound by opening a bypass oil valve. Traction and acceleration are improved and handling is optimized.
