WP Suspension India

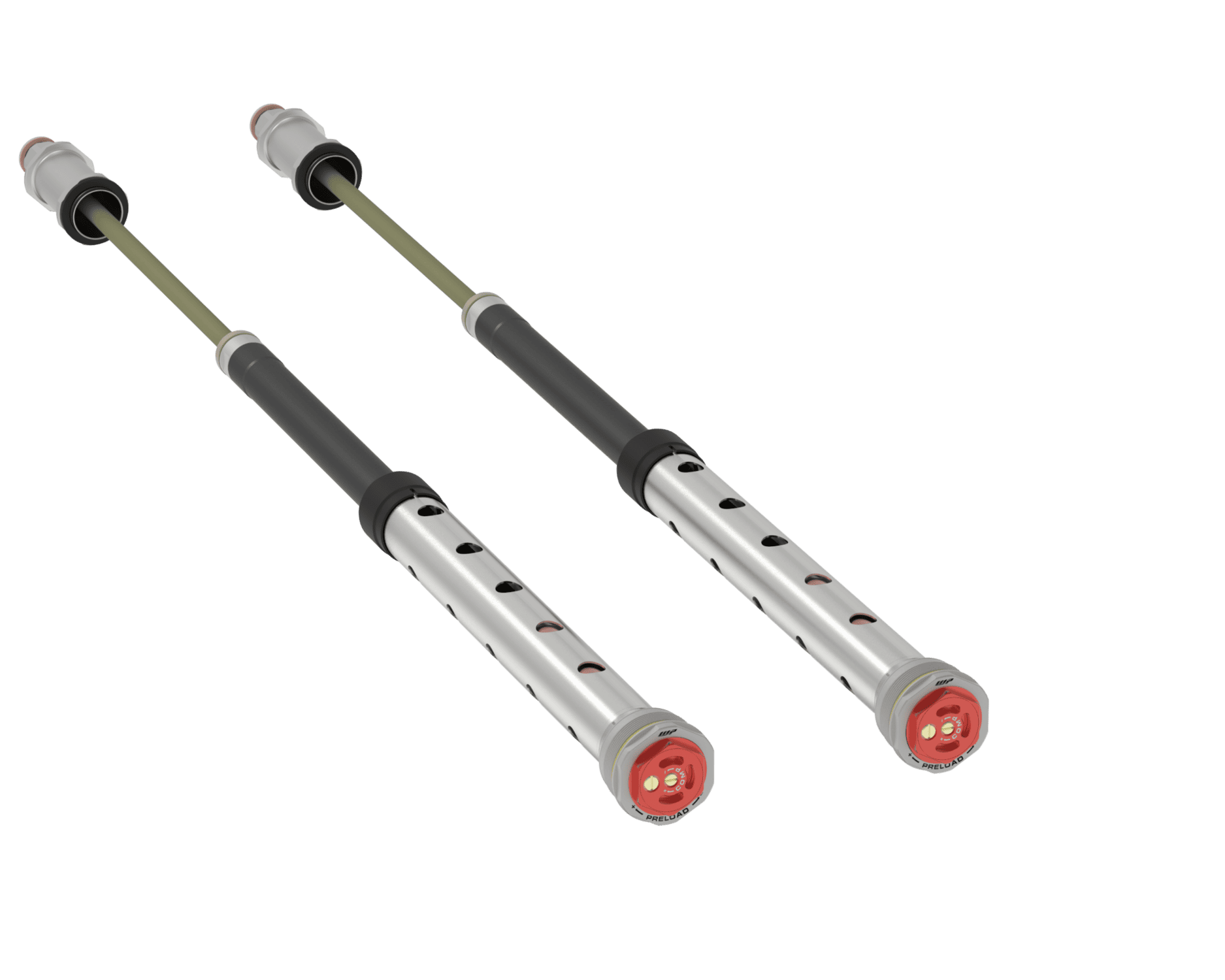

XPLOR PRO 7500 CARTRIDGE

XPLOR PRO 7500 CARTRIDGE

TECHNOLOGY

Closed Cartrigde

CLOSED CARTRIGDE

By compartmentalizing the damping system on CLOSED CARTRIDGE forks, it is possible to reduce the oil volume. Pressure in the system prevents cavitation and ensures reliable damping performance in demanding track conditions.

Cone Valve

CONE VALVE

The CONE VALVE technology improves the turbulence-free oil flow through the damping piston by using a conical valve. This results in a much better response and a lower initial breakaway torque.

KEY FEATURES

    • New cartridge including CONE VALVE Technology
    • Improved response and feedback from riding surface in every riding situation
    • Pressurized system reduces cavitation risk – no damping loss
    • Extreme durability due to the use of the highest quality materials
    • All adjustments can be made externally
    • CLOSED CARTRIDGE Technology
    • Fully adjustable with standard tools
    • Handcrafted with the greatest of care
    • Adjustable spring preload

The WP XPLOR PRO 7500 Cartridge is designed to deliver top-tier performance and redefine your riding experience. It incorporates the latest motorsport know-how and features advanced technologies to enhance damping performance and consistency.
One of the key features of the WP XPLOR PRO 7500 Cartridge is the built-in WP CLOSED CARTRIDGE TECHNOLOGY. This technology utilizes pressurized compartments within the cartridge to ensure consistent damping performance. By separating the oil and gas chambers, it prevents cavitation and loss of damping, even during rapid and repeated impacts. This means that the suspension will maintain optimal performance throughout demanding motorsport conditions.

Additionally, the cartridge incorporates CONE VALVE Technology. This technology utilizes a unique valving system that controls oil flow through a cone-shaped valve. The CONE VALVE design provides precise and progressive damping characteristics, allowing the suspension to effectively absorb both small and large impacts. This results in improved handling, traction, and stability, allowing drivers to push the limits on the track.

COMPATIBLE WITH SHERCO 2018 250 SEF-R

Linked Damping Suystem

WP TECHNOLOGY


AER TECHNOLOGY
The AER technology significantly reduces the overall weight. In addition, the AER system allows an uncomplicated optimization of the damping performance and adaptation to the track without opening the fork.

CLOSED CARTRIGDE
By compartmentalizing the damping system on CLOSED CARTRIDGE forks, it is possible to reduce the oil volume. Pressure in the system prevents cavitation and ensures reliable damping performance in demanding track conditions.

CONE VALVE
The CONE VALVE technology improves the turbulence-free oil flow through the damping piston by using a conical valve. This results in a much better response and a lower initial breakaway torque.

LINKED DAMPING SYSTEM
The LINKED DAMPING technology optimizes the progression of the entire shock absorber via a linkage attached to the swing arm. This enables perfect grip and sufficient damping reserves.

OPEN CARTRIDGE
Due to the increased oil volume in the damping system, the OPEN CARTRIDGE technology enables optimized heat dissipation with reduced friction. This ensures constant damping performance despite increased stress.

PROGRESSIVE DAMPING SYSTEM
PROGRESSIVE DAMPING technology generates a progressive damping characteristic with increased damping performance in the last third of the suspension travel, resulting in a reduction in weight and maintenance.

SUPERTRAX
SUPERTRAX technology perfects the TRAX System. SUPERTRAX detects missing ground contact and enables faster rebound by opening a bypass oil valve. The rider has 100% control over the speed of the rebound movement thanks to fully variable adjustment of the rebound damping.

TRAX TECHNOLOGY
The TRAX technology detects missing ground contact and enables a faster rebound by opening a bypass oil valve. Traction and acceleration are improved and handling is optimized.
