WP Suspension India

XPLOR PRO 7448

XPLOR PRO 7448

TECHNOLOGY

AER Technology

AER TECHNOLOGY

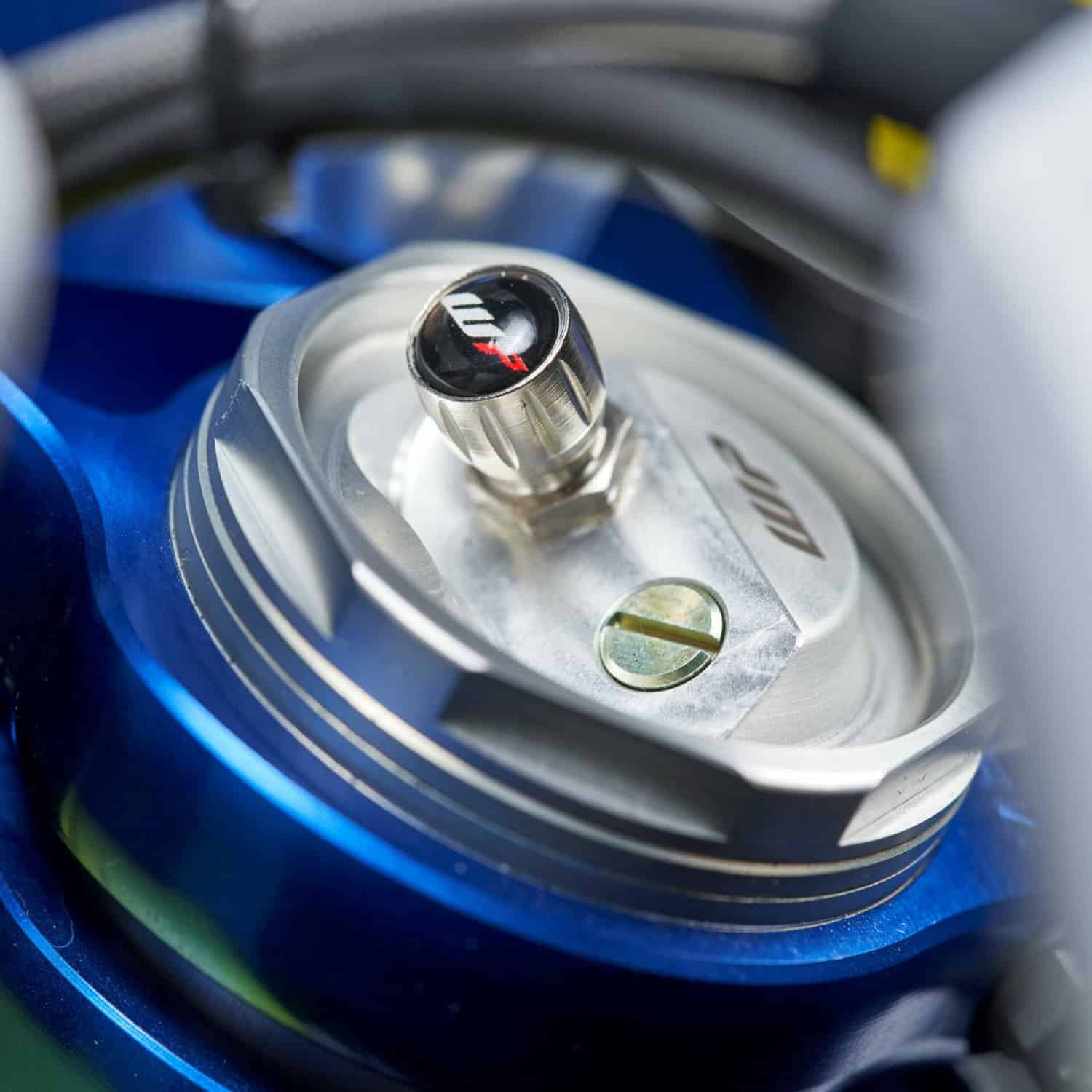

The AER technology significantly reduces the overall weight. In addition, the AER system allows an uncomplicated optimization of the damping performance and adaptation to the track without opening the fork.

Closed Cartrigde

CLOSED CARTRIGDE

By compartmentalizing the damping system on CLOSED CARTRIDGE forks, it is possible to reduce the oil volume. Pressure in the system prevents cavitation and ensures reliable damping performance in demanding track conditions.

Cone Valve

CONE VALVE

The CONE VALVE technology improves the turbulence-free oil flow through the damping piston by using a conical valve. This results in a much better response and a lower initial breakaway torque.

KEY FEATURES

    • AER Technology drastically reduces the total weight
    • Constant damping performance with WP CONE VALVE Technology
    • Easy and quick adjustment due to split fork system
    • Low maintenance due to minimum manufacturing tolerances
    • Increased comfort in hard settings despite high breakthrough reserves

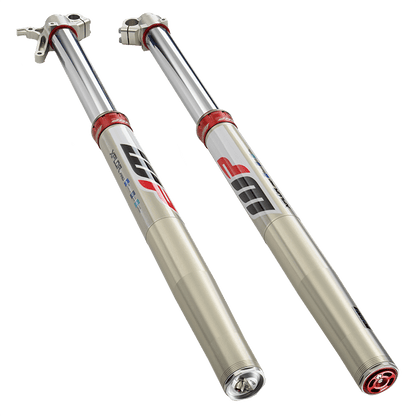

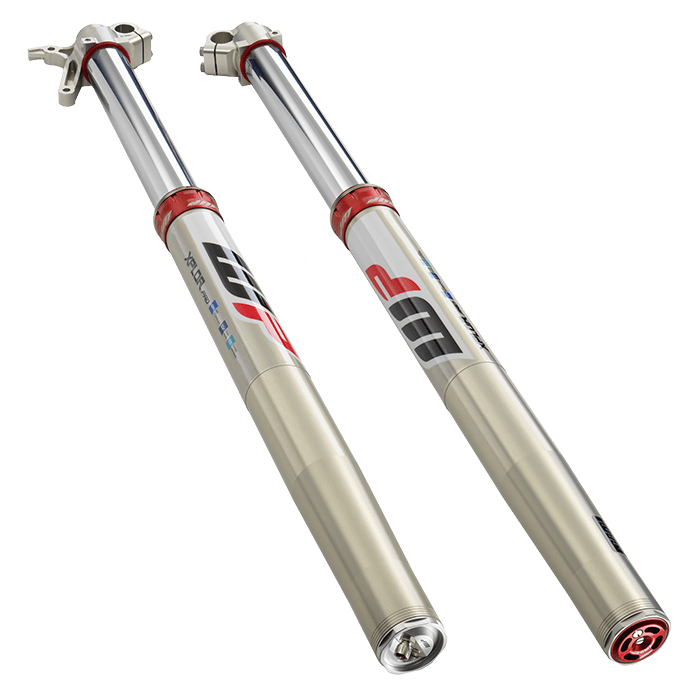

Always perfectly adapted to the task. With the new WP XPLOR PRO 7448 Air fork, short-term changes in the track and other riding conditions are no problem. Via adjustment of the air pressure, the Air fork with proven WP AER Technology allows even big changes in riding dynamics whether on the track or deep in the middle of nowhere. Using the easy and quickly accessible adjusters for compression and rebound damping even fine adjustments on the roadside are performed quickly. Developed and proven in professional enduro sports, the WP XPLOR PRO 7448 Air fork also shines with WP CONE VALVE Technology and WP CLOSED CARTRIDGE design, which not only leads to a unique response at high speeds but also guarantees a constant damping performance with high breakthrough resistance after strong hits.

TECH DATA

  • Weight 7529 g
  • Adjuster
    • compression damping
    • rebound damping
  • Länge 37.2 inch
  • Kolben 1.34 inch
  • KS 0.47 inch
  • Gewicht 16.6 lb.

Linked Damping Suystem

WP TECHNOLOGY


AER TECHNOLOGY
The AER technology significantly reduces the overall weight. In addition, the AER system allows an uncomplicated optimization of the damping performance and adaptation to the track without opening the fork.

CLOSED CARTRIGDE
By compartmentalizing the damping system on CLOSED CARTRIDGE forks, it is possible to reduce the oil volume. Pressure in the system prevents cavitation and ensures reliable damping performance in demanding track conditions.

CONE VALVE
The CONE VALVE technology improves the turbulence-free oil flow through the damping piston by using a conical valve. This results in a much better response and a lower initial breakaway torque.

LINKED DAMPING SYSTEM
The LINKED DAMPING technology optimizes the progression of the entire shock absorber via a linkage attached to the swing arm. This enables perfect grip and sufficient damping reserves.

OPEN CARTRIDGE
Due to the increased oil volume in the damping system, the OPEN CARTRIDGE technology enables optimized heat dissipation with reduced friction. This ensures constant damping performance despite increased stress.

PROGRESSIVE DAMPING SYSTEM
PROGRESSIVE DAMPING technology generates a progressive damping characteristic with increased damping performance in the last third of the suspension travel, resulting in a reduction in weight and maintenance.

SUPERTRAX
SUPERTRAX technology perfects the TRAX System. SUPERTRAX detects missing ground contact and enables faster rebound by opening a bypass oil valve. The rider has 100% control over the speed of the rebound movement thanks to fully variable adjustment of the rebound damping.

TRAX TECHNOLOGY
The TRAX technology detects missing ground contact and enables a faster rebound by opening a bypass oil valve. Traction and acceleration are improved and handling is optimized.
